Accessories
18.6 Gbps
Router
9.14 Gbps
Firewall
1.89 Gbps
IPsec VPN

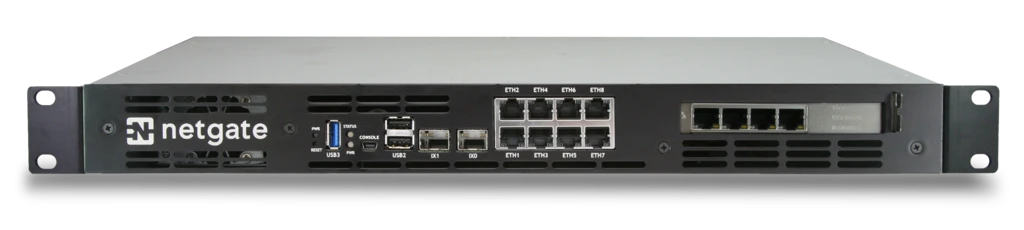

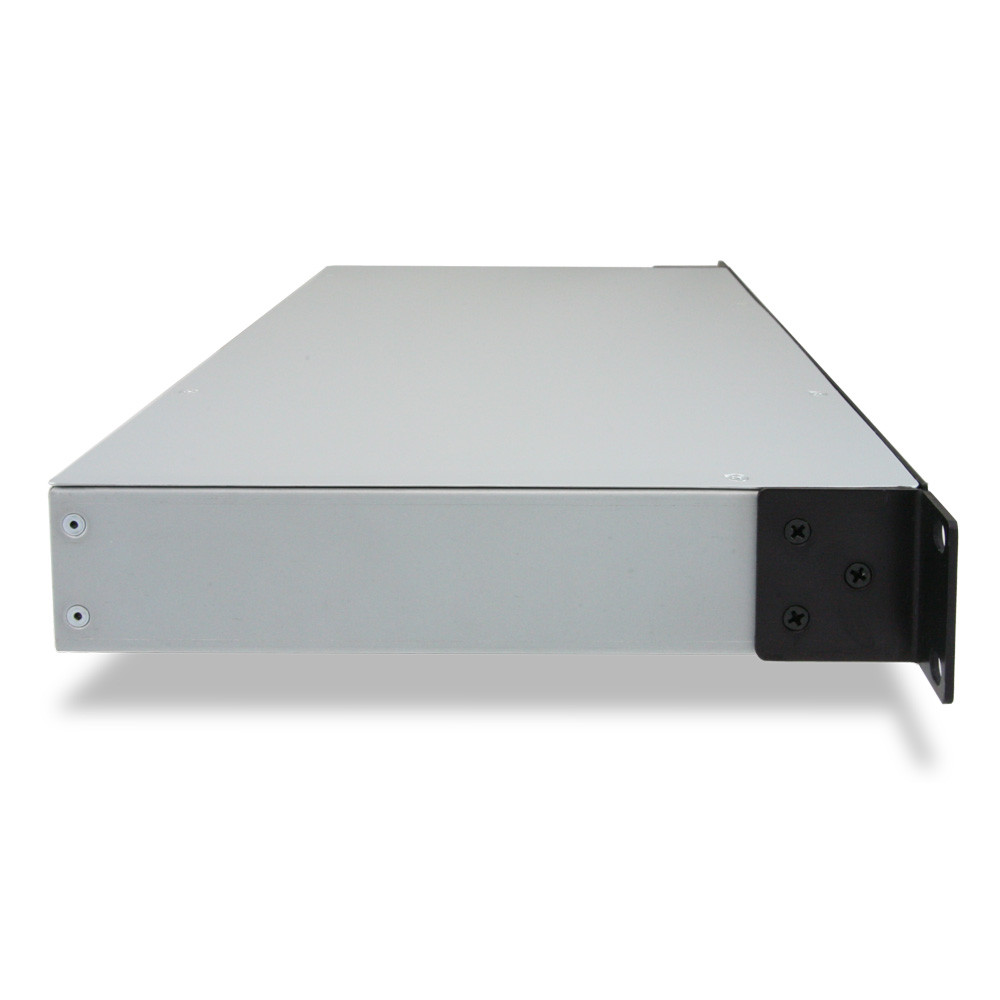

Netgate 7100 pfSense+ Security Gateway

Reference :
7100
€1,349.00
VAT excluded
Memory Ram
Storage
Expansion card
Quantity
In Stock, Order before 12:00 : Same day shipment

In Stock
Expedition on Day
Free Shipping
Warranty

Overview

The Netgate 7100 1U 19" rack mount system is a state of the art pfSense Plus Security Gateway appliance, featuring the 4 Core Intel® Atom® C-3558 processor with AES-NI to support a high level of I/O throughput and optimal performance per watt. This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit. Built with performance, versatility, and low total cost of ownership in mind, pfSense systems meet the growing needs of organizations of all sizes.

Quad Core 2.2 Ghz Intel® Atom CPU

Pre-loaded with pfSense Software

Up to 14 Independent and switched ports

10 Gigabit SFP+ Ports

Intel AES-NI Compatibility

8GB DDR4 RAM (Expandable to 24GB)

The Netgate 7100 pfSense Plus is a versatile security gateway offering comprehensive frontend security and support a high level of I/O throughput.

The Netgate® 7100 1U security gateway appliance with pfSense Plus software is ideal for remote office, SMB, and enterprise networks looking for enterprise-class performance in a rack-mount form-factor. Featuring a Quad-Code Intel® Atom 2.2 GHz CPU, up to 24 GB of DDR4 RAM, 2x 10Gb SFP+ ports and 8x 1Gb-Ethernet switched ports, and an expandable 4x 1Gb ports or 2x 10Gb ports, the Netgate 7100 achieves more than 18 Gbps routing and 6.5 Gbps of firewall throughput (more when expansion card is on). The Netgate 7100 is our best-selling rack-mount solution.

Low total cost of ownership
   - No artifical limits or add-ons required to make your system fully functional.
   - No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
   - Standard configuration with 8GB of RAM and 32GB storage.
   - Low power requirements to help save you money.
   - This system is designed for a long deployment lifetime.


Grows with you
   - From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
   - Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
   - Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering
   - Maximum Active Connections: 8,000,000


Easy GUI management
   - Manage pfSense settings through our web-based GUI.
   - No fumbling with a command line interface or typing arcane commands.


Secure remote access
   - Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security, or connect to the Cloud!
   - Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.


Best For:
   - Medium to Large Sized Networks with 1U rack mount cabinets
   - Medium to Large Sized Branch Office with heavy loads
   - Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On Premise Appliance
   - Anyone with High-Speed 10 Gigabit and/or 1 Gigabit Connections
   - Anyone with many VPN Connections
   - Anyone with high speed connections who wish to configure IDS/IPS feature


Software Features:
pfSense is a free, open source firewall and router platform based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special purpose Appliances. This next generation pfSense security appliance features include:
   - Stateful packet filtering firewall or pure router
   - Routing policy per gateway and per-rule for multiple WAN, failover, load balancing
   - Transparent layer 2 firewall
   - Support for IPV6, NAT, BGP
   - Captive portal with MAC filtering, RADIUS support, etc
   - VPN: IPsec, OpenVPN, PPTP
   - Dynamic DNS client
   - DHCP Server and Relay functions
   - PPPoE Server
   - Reporting and monitoring features with real time information

Learn more about the features of pfSense


Additional information:
   - Quick Start Guide and other Manuals.
   - Not PoE Compatible.
   - Power cords EU included (US and UK available on demande)


Your purchase includes all of these super neat things, which will help you get started with pfSense:
   - Access to the online version of the continuously updated official pfSense book (700+ pages)
   - ACB: Auto-Configuration Backup Service
   - Monthly live education hangouts featuring in depth pfSense topics hosted by our core developers
   - Access to the archive of education hangouts
   - Access to the pfSense Virtual Security Gateway Appliance for VMWare®


Warranty and support information:
   - Appliance warranty applicable if sold in France by Viatitude: One year manufacturer's hardware warranty, return cost to buyer's expense, back-delivery to Viatitude expense (except outside France) with repaired or spare item, new or refactored, identical or superior to original item.
   - Optional extension to 3 years or 5 years of manufacturer's hardware warranty by Viatitude.
   - Next-day spare delivery (in France): upon request.
   - All specifications subject to change without notice.

pfSense community based software support is available here.

7100
Category
Products
Product
7100
Software
pfSense Plus
Form factor
Rack
User profile
Business
Entreprise
L3 forwarding
IMIX Traffic: 5.84 Gbps
IPERF3 Traffic: 18.55 Gbps
Firewall
IMIX Traffic: 2.67 Gbps (10k ACLs)
IPERF3 Traffic: 9.14 Gbps (10k ACLs)
IPsec VPN
IMIX Traffic: 499 Mbps (AES-GCM-128 w/QAT)
IPERF3 Traffic: 1.89 Gbps (AES-GCM-128 w/QAT)
CPU
Intel Denverton C3558, 2.2 GHz
CPU Cores
Four Cores
Networking
2x 10GbE Intel x553 SFP+ Ports, 8-port 1Gbps Marvell 88E6190 switch, uplinked at 5 Gbps (2x 2.5 Gbps) to Intel SoC for LAN. Virtual Machine Device Queues reduce I/O overhead
Storage
32GB eMMC onboard, Additional storage via M.2 SSD or SATA3
Memory
8 GB DDR4 (expandable to 24GB via SODIMM)
Expansion
1x PCI-E 3.0 4x slot, 1x M.2 M-Key 2280 supported, 4x SATA3
Console port
1x mini-USB Console
USB Port
1x USB 3.0 ports, 2x USB 2.0 ports
LED
Power/Status/SATA Activity
Enclosure
19" 1U Rack Mount
Cooling
2x Low-noise active control chassis fans
Power
100-240V, 50-60Hz, 1.5-3A Internal Power Supply, AC Inlet: IEC320-C14 (3 PIN), Power Cord: NEMA 5-15P to IEC320-C13
Power consumption
TBD
Certifications
FCC, CE, RoHS, REACH, IEC 60950, EN55022, EN 61000-3-3, EN 610000-3-2, EN55024, CISPR 22
